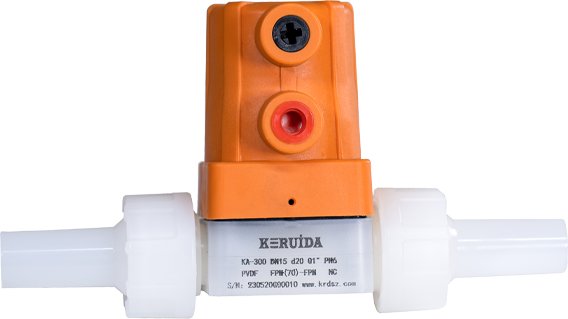

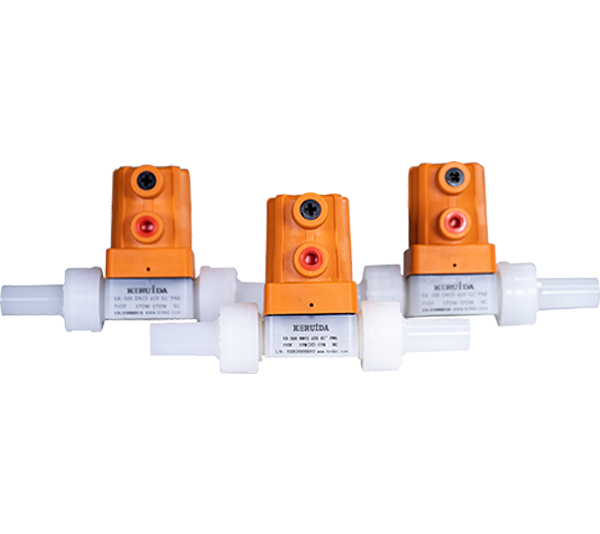

Pneumatic Diaphragm Valve

Pneumatic Diaphragm Valve

Currently, chemical diaphragm pumps (including imported brands) widely used in the market have common problems such as cavity corrosion, short diaphragm life, high maintenance costs, long maintenance cycles, etc. The customer's factory process improvements have changed greatly, and the opinions on improvement are inconsistent with Suggestions cannot be responded to and resolved quickly. In response to various current situations, the Korida technical team made a series of optimizations and improvements based on investigating the current problems of similar equipment.

MORE>
  • Product Description

    Suzhou Korida Intelligent Technology Co., Ltd. is located in Kunshan City, Jiangsu Province, which ranks first among the top 100 counties in the country. The company is committed to technology research and development, manufacturing, marketing and after-sales service in the field of high-end pumps and valves. Mainly serving solar photovoltaic, lithium battery, semiconductor, panel display, LED lighting and other industries.
    Korida is an international fluid control product manufacturer. Automated valves and instrumentation for ultra-pure and corrosive systems are our main products. Among them, the KA series diaphragm valves originate from German technology research and development.
    The company has obtained a number of patents, and its products are widely used in semiconductors, glass panels, electroplating, wastewater treatment, waste liquid solidification, photovoltaics, landfill leachate, circuit boards, metallurgy, steel, ultra-wastewater, recycling, chemical industry, Food and beverage, electric power, papermaking, biopharmaceuticals, biological fermentation and other fields.
    All products and components are produced, injection molded, cleaned, assembled, tested and packaged under clean room conditions. As a supplier of fluid control systems such as pumps and valves, we have a professional team from R&D to design, from quality to production, from molds to injection molding. Korida has always implemented the ISO9001 comprehensive quality management system for quality, environment and health, and used modern production methods to ensure the quality requirements of high-end products.

  • Features

    Easy to install and maintain, with high flexibility, high quality and high reliability, it can meet the requirements of high number of operations;
    1. The actuator can be selected from NC, NO, DA
    2. Diaphragm EPDM, FPM , PTFE, choose water, acid and alkaline media
    3. Valve body PVC-U, CPVC, PP-H, PVDF, PFA, etc.
    4. Interface standards include metric, American standard, Japanese standard

  • Application Occasions

    1. Manufacturing semiconductor and solar wafers;
    2. Transportation and supply of chemicals;
    3. PCB printed circuit board production;
    4. LCD/LED production;
    5. Electroplating, metal deposition, papermaking, etc.

Specifications






Technical Parameters

Chemical Properties Of Materials

Control methodConnection sizeSizeValve body material

Pressure

Grade

Flow

1/min

Flow

m3/h

Temperature

°C

Diaphragm material

Connection method

Interface standards

Pneumatic

KA3

00

NO

DN15

(0.5")

20

PVC-U

CPVC

PP-H

PVDF

PN61257.560

EPDM

EPDM-PER

FPM

FPM-70

G thread is made of socket butt welding

Metric - ISO 9393

European standard-DIN 8063

American Standard-ANSI

Japanese Standard-JIS


80
80
140
NC

DN15

(0.5")

20

PVC-U

CPVC

PP-H

PVDF

PN61257.560

EPDM

EPDM-PER

FPM

FPM-70

G thread is made of socket butt welding

Metric - ISO 9393

European standard-DIN 8063

American Standard-ANSI

Japanese Standard-JIS

80
80
140
DA

DN15

(0.5")

20

PVC-U

CPVC

PP-H

PVDF

PN61257.560

EPDM

EPDM-PER

FPM

FPM-70

G thread is made of socket butt welding

Metric - ISO 9393

European standard-DIN 8063

American Standard-ANSI

Japanese Standard-JIS


80
80
140
Material nameAbbreviationGeneral chemical propertiesMaximum operating temperature
long timeshort
Polyvinyl chloridePVCIt can withstand the corrosion of most "acids", "alkalis" and "salts" from low to high concentrations, but it is not resistant to the corrosion of "aromatic hydrocarbons", "ketones", "ethers" and "chlorinated carbon hydrocarbons".55℃60℃
Chlorinated polyvinyl chlorideCPVCThe chemical corrosion resistance is similar to PVC, but the temperature resistance is better than PVC.95℃110℃
PolypropylenePPThe chemical resistance is very good, and the resistance to general acids is good, but it is less resistant to a mixture of two different acids, such as: nitric acid + sulfuric acid or sulfuric acid + hydrofluoric acid. For general organic solvents.90℃110℃
Polyvinyl difluoridePVDFIt has good chemical resistance and will only be corroded by "oleum, sulfur trioxide, strong alkali amines, ketones", etc.140℃150℃
Polytetrafluoroethylene (Teflon)PTFEIt is almost not corroded by any chemicals, and will only be corroded by a few chemicals at high temperatures.250℃300℃
Fluorine rubber (copolymer of fluorinated ethylene and hexafluorinated propylene) VITONFPMIt has good weather resistance, ozone resistance, oil resistance, heat resistance and chemical resistance. It is self-extinguishing rubber, but its cold resistance is not good (-45℃ embrittlement point).200℃200℃
Ethylene propylene rubberEPDMIt has excellent weather resistance, ozone resistance, chemical resistance, good oil resistance, and is a self-extinguishing rubber. It has poor low temperature resistance and is not resistant to aromatic hydrocarbons.90℃120℃
Butadiene nitrile rubberNBRThe main performance is "good oil resistance", good heat resistance, long-term use at 120°C, poor cold resistance, and poor water resistance.120℃120℃
