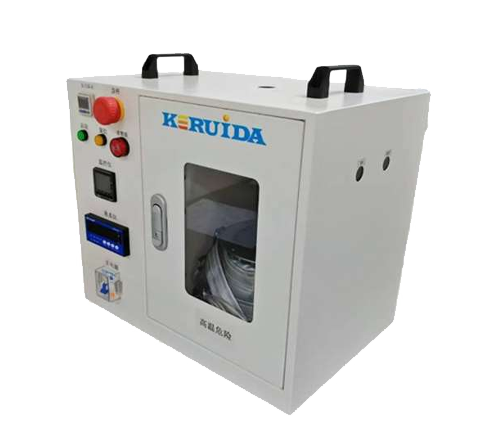

High Precision Water Oxygen Cabinet

High Precision Water Oxygen Cabinet

The water oxygen cabinet is a closed precision constant temperature equipment with heating cycle, which is mainly used in the diffusion wet oxygen process of photovoltaic cells. The set target temperature is achieved through intermittent or continuous control of each intelligent module, and stable temperature control is maintained.

MORE>
  • Overview

    The water oxygen cabinet is a closed precision constant temperature equipment with heating cycle, which is mainly used in the diffusion wet oxygen process of photovoltaic cells. The set target temperature is achieved through intermittent or continuous control of each intelligent module, and stable temperature control is maintained.
    The water oxygen cabinet consists of an auxiliary electrical system such as a liquid level control module, a constant temperature control module, an alarm module, and an emergency response module. It is a kind of equipment that can maintain a constant temperature environment. It can be equipped with optional communication functions, and the modular integrated installation of gas and liquid valve groups is optional to make the structure more compact.

  • Main Features

    The main advantages are that the whole machine has a reasonable layout, clean and beautiful appearance, integrated module design, easy on-site installation, convenient for daily operation and regular maintenance and maintenance.
    Intelligent control has sensitive response speed, high control accuracy, simple operation, built-in chain alarm device, and high safety factor. Through the control of the constant temperature device, the process medium in the water oxygen bottle can always be maintained within a stable temperature range required by the process, thereby ensuring excellent product process quality.
    According to the use situation of the customer's site, the water-oxygen cabinet and the air-to-liquid valve set can be combined in the structure of the equipment, and the assembly can be offline before boarding the machine, which can ensure the effective connection between the valve and the valve and the pipeline, and avoid the occurrence of air leakage, liquid leakage and other problems caused by poor installation due to space constraints.It also effectively extends the service life and maintenance cycle of the valve set.

Specifications


Technical Parameters

TypeItemsContent
PerformanceTemperature control range35℃-100℃
PerformanceTemperature control accuracy±0.5℃
PerformanceWeighing range0-10kg
PerformanceStatic weight error±10g
PerformanceDynamic weight error±25g
PerformanceAlarm functionPressure, overcurrent, temperature, low level, high level alarm
PerformanceUpper and lower limits of over-temperature alarm±2℃
PerformanceLiquid level alarmThe actual liquid level is lower than/higher than the alarm set value
ControlTemperature control methodPID
ControlTemperature settingThermostat + host computer
ControlTemperature collectionPT100
ControlLiquid level detectionPressure sensor
ControlException handlingBeep + port output
ControlCommunication methodModbus RTU/TCP+IO point port output (optional)
ControlGas-liquid controlGas-liquid module integration (optional)
SpecificationDimensions430*300*400mm
SpecificationRated voltageAC200-240V 50Hz
SpecificationHeating power500W
SpecificationRated current2.5A
SpecificationWeight of the whole machine15kg
