It is used in the high-purity semiconductor industry, as well as in ultrapure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between -40°C and 200°C, and has good mechanical characteristics and wear resistance.

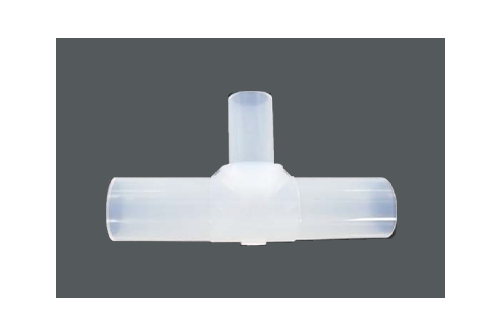

Equal diameter tee
Variable diameter elbow
| Number | Size | A | B | ΦC | D |
| K3543 | 1/4" | 48.54 | 19.05 | 4.18 | 23.62 |
| K3544 | 3/8" | 63.77 | 24.05 | 6.38 | 25.91 |
| K3545 | 1/2" | 71.68 | 25.40 | 9.84 | 34.54 |
| K3546 | 3/4" | 103.18 | 36.51 | 15.87 | 51.59 |
| K3547 | 1" | 108.74 | 37.52 | 22.22 | 54.37 |
| K3548 | 1-1/4" | 113.63 | 37.21 | 27.78 | 51.08 |
| K3549 | 1-1/2" | 113.63 | 33.28 | 33.73 | 56.91 |
| K3550 | 1“-S | 95.00 | 30.65 | 22.20 | 47.50 |
| K3551 | 1-1/4"-L | 158.00 | 50.00 | 27.80 | 79.00 |
| K3552 | 1-1/2"-L | 174.00 | 58.00 | 33.70 | 87.00 |
| Number | Size | A | B | ΦC | ΦD | E |
| K3553 | 3/8" x 1/4" x 3/8" | 63.77 | 24.05 | 6.38 | 3.98 | 27.74 |
| K3554 | 1/2" x 1/4" x 1/2" | 71.68 | 25.40 | 9.84 | 4.14 | 33.00 |
| K3555 | 1/2" x 3/8" x 1/2" | 71.68 | 25.40 | 9.84 | 6.56 | 28.19 |
| K3556 | 3/4" x 1/4" x 3/4" | 103.18 | 36.51 | 15.87 | 3.98 | 38.60 |
| K3557 | 3/4" x 3/8" x 3/4" | 103.18 | 36.51 | 15.87 | 6.34 | 48.13 |
| K3558 | 3/4" x 1/2" x 3/4" | 103.18 | 36.51 | 15.87 | 9.53 | 48.13 |
| K3559 | 1" x 1/4" x 1" | 108.74 | 37.52 | 22.22 | 9.53 | 42.25 |
| K3560 | 1" x 1/2" x 1" | 108.74 | 37.52 | 22.22 | 4.25 | 42.25 |
| K3561 | 1" x 3/4" x 1" | 108.74 | 37.52 | 22.22 | 15.87 | 47.01 |
| K3562 | 1-1/4" x 1" x 1-1/4" | 113.63 | 37.20 | 27.78 | 21.92 | 56.82 |
| K3563 | 1-1/2" x 1" x 1-1/2" | 113.63 | 33.29 | 33.72 | 27.90 | 60.74 |
| K3564 | 1-1/2" x 1-1/4" x 1-1/2" | 113.63 | 33.29 | 34.30 | 22.25 | 56.91 |
| K3565 | 1" x 3/4" x 1"-S | 95.00 | 30.65 | 22.20 | 15.86 | 42.50 |
