It is used in the high-purity semiconductor industry, as well as in ultrapure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between -40°C and 200°C, and has good mechanical characteristics and wear resistance.

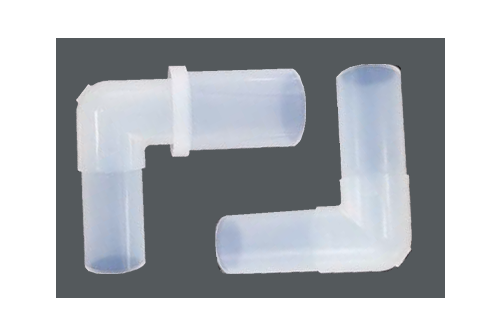

Equal diameter elbow
Variable diameter elbow
| Number | Size | A | B | ΦC |
| K3523 | 1/4" | 25.65 | 19.05 | 4.05 |
| K3524 | 3/8" | 35.31 | 25.40 | 6.55 |
| K3525 | 1/2" | 42.67 | 29.46 | 9.50 |
| K3526 | 3/4" | 47.50 | 29.97 | 15.85 |
| K3527 | 1" | 58.67 | 34.54 | 22.18 |
| K3528 | 1-1/4" | 68.26 | 38.10 | 27.83 |
| K3529 | 1-1/2" | 74.30 | 38.10 | 33.77 |
| K3530 | 1-1/4" | 79.00 | 50.00 | 27.80 |
| K3531 | 1-1/2" | 87.00 | 58.00 | 33.70 |
| Number | Size | A | B | ΦC | ΦD | E | F |
| K3532 | 3/8" x 1/4" | 34.51 | 25.4 | 6.32 | 4.05 | 22.65 | 19.05 |
| K3533 | 1/2" x 1/4" | 42.67 | 29.46 | 9.48 | 3.95 | 33.78 | 20.57 |
| K3534 | 1/2" x 3/8" | 42.67 | 29.46 | 9.48 | 6.32 | 36.07 | 22.86 |
| K3535 | 3/4" x 1/2" | 47.5 | 29.97 | 15.83 | 9.5 | 42.67 | 29.46 |
| K3536 | 1" x 1/2" | 58.67 | 34.54 | 22.16 | 9.5 | 42.67 | 29.46 |
| K3537 | 1" x 3/4" | 58.67 | 34.54 | 22.16 | 15.83 | 47.5 | 29.97 |
| K3538 | 1-1/4" x 1" | 68.26 | 42.1 | 27.9 | 22.19 | 60.01 | 38.1 |
| K3539 | 1-1/2" x 1" | 69.21 | 42.1 | 33.79 | 22.19 | 60.01 | 38.1 |
| K3540 | 1-1/2" x 1-1/4" | 74.3 | 43.1 | 33.86 | 27.49 | 64.39 | 38.1 |
| K3541 | 1" x 1/2"-S | 47.5 | 31.58 | 22.22 | 9.5 | 42.5 | 28.87 |
| K3542 | 1" x 3/4"-S | 47.5 | 31.58 | 22.22 | 15.86 | 42.5 | 28.87 |
