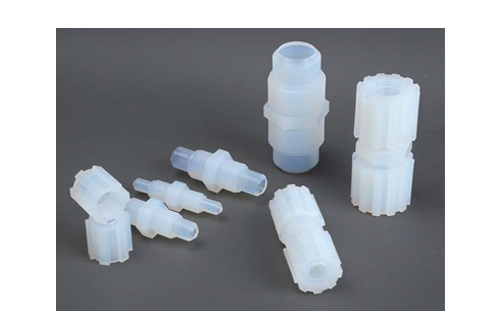

It is used in the high-purity semiconductor industry, as well as in ultrapure water or corrosive chemicals. It can maintain good dimensional stability and corrosion resistance between -40°C and 200°C, and has good mechanical characteristics and wear resistance.
Isodiametric direct
Variable diameter direct
Single nut direct
Wear the board directly
Variable diameter through the plate directly
| Number | Size | Diameter of hole | A | B |
| K3001 | 1/4" | 3.3 | 62.5 | 27.7 |
| K3002 | 3/8" | 6.4 | 68.3 | 30.7 |
| K3003 | 1/2" | 9.7 | 73.7 | 33.3 |
| K3004 | 3/4" | 16 | 82.6 | 37.6 |
| K3005 | 1" | 22.4 | 95 | 43.7 |
| K3414 | 1.25" | 27.95 | 176.66 | 88.33 |
| K3417 | 1.5" | 33.70 | 215.00 | 107.50 |
| Number | Size | Diameter of hole | A | B | C |
| K3011 | 3/8" x 1/4" | 3.3 | 65.3 | 30.7 | 27.7 |
| K3012 | 1/2" x 1/4" | 3.3 | 67.8 | 33.3 | 27.7 |
| K3013 | 1/2" x 3/8" | 6.4 | 70.9 | 33.3 | 30.7 |
| K3014 | 3/4" x 1/4" | 3.3 | 72.4 | 37.6 | 27.7 |
| K3015 | 3/4" x 1/4" | 6.4 | 75.9 | 37.6 | 30.7 |
| K3016 | 3/4" x 1/2" | 9.7 | 78 | 37.6 | 33.3 |
| K3017 | 1" x 1/2" | 9.7 | 84.6 | 43.9 | 33.5 |
| K3018 | 1" x 3/4" | 16 | 88.6 | 43.7 | 37.6 |
| Number | Size | MNPT Size | Diameter of hole | A | B | C |
| K3037 | 1/4" | 1/8" | 3.3 | 49 | 27.7 | 14 |
| K3038 | 1/4" | 1/4" | 3.3 | 49 | 27.7 | 14 |
| K3039 | 1/4" | 3/8" | 3.3 | 49 | 27.7 | 14 |
| K3040 | 1/4" | 1/2" | 3.3 | 51.6 | 27.7 | 16.8 |
| K3041 | 3/8" | 1/8" | 5.1 | 51.8 | 30.7 | 14 |
| K3042 | 3/8" | 1/4" | 6.4 | 51.8 | 30.7 | 14 |
| K3043 | 3/8" | 3/8" | 6.4 | 51.8 | 30.7 | 14 |
| K3044 | 3/8" | 1/2" | 6.4 | 54.6 | 30.7 | 16.8 |
| K3045 | 3/8" | 3/4" | 6.4 | 54.9 | 30.7 | 17 |
| K3315 | 1/2" | 1/8" | 5.1 | 54.4 | 33.3 | 14 |
| K3047 | 1/2" | 1/4" | 7.1 | 54.6 | 33.3 | 14 |
| K3048 | 1/2" | 3/8" | 9.7 | 54.6 | 33.3 | 14 |
| K3049 | 1/2" | 1/2" | 9.7 | 57.2 | 33.3 | 16.8 |
| K3050 | 1/2" | 3/4" | 9.7 | 57.4 | 33.3 | 17 |
| K3053 | 3/4" | 1/2" | 13.2 | 62 | 37.6 | 16.8 |
| K3054 | 3/4" | 3/4" | 16 | 62 | 37.6 | 17 |
| K3055 | 3/4" | 1" | 16 | 67.3 | 38.6 | 21.6 |
| K3056 | 1" | 1/2" | ||||
| K3057 | 1" | 3/4" | 16.8 | 68.1 | 43.7 | 17 |
| K3058 | 1" | 1" | 22.4 | 72.1 | 43.7 | 21.6 |
| Number | Size | Diameter of hole | A | B | D | E |
| K3032 | 1/4" | 3.3 | 82 | 46.7 | 27.7 | 12.7 |
| K3033 | 3/8" | 6.4 | 87.6 | 49.8 | 30.7 | 12.7 |
| K3034 | 1/2" | 9.7 | 92.7 | 52.3 | 33.3 | 12.7 |
| K3035 | 3/4" | 16 | 104.6 | 59.9 | 37.6 | 12.7 |
| K3036 | 1" | 22.4 | 112.3 | 60.7 | 44.2 | 12.7 |
| Number | Size | Diameter of hole | A | B | D | E |
| K3246 | 3/8" x 1/4" | 3.3 | 78.5 | 43.4 | 27.7 | 6.4 |
| K3247 | 1/2" x 1/4" | 3.3 | 81.3 | 46 | 27.7 | 6.4 |
| K3248 | 1/2" x 3/8" | 6.4 | 83.8 | 46 | 30.7 | 6.4 |
| K3249 | 3/4" x 1/2" | 9.7 | 94 | 53.6 | 33.3 | 6.4 |
| K3294 | 1"x3/4" | 16 | 100.6 | 55.4 | 38.6 | 6.4 |
