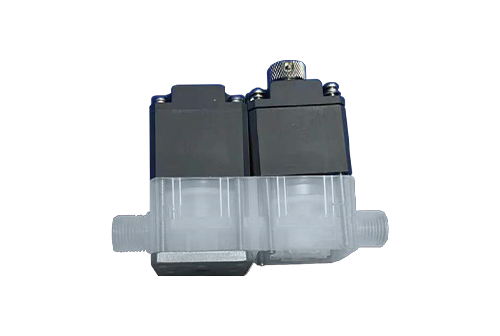

PFA Suck Back Valve

The high-pressure suction switch valve adopts an upward movement closing structure, so that the broken material is instantly sucked back at the same time as the stop, reducing the residual flow on the remaining needle, so that the medium does not produce leakage, drawing and other phenomena. Suitable for high-viscosity liquid substances, with a suction function; with a piston stroke adjustment structure and a suction structure to prevent liquid leakage; auxiliary air inlet air-assisted closure.

MORE>

Technical Specifications
Liquids: chemicals, ultrapure water (do not use muddy liquids) Chemicals, D. IWater(Don’t use the slurry)
Working pressure: 0-0.5Mpa
Pneumatic diaphragm valve actuator control pressure: 0.5Mpa control port: Rp 1/8
Back pressure: 0-0.5Mpa
Working temperature: normal temperature 0-100℃, high temperature 0-130℃
Material: Main body: PFA nut: PFA base and actuator: PVDF diaphragm: PTFE
Precautions: According to the precautions of internal chemical substances, due to changes in product materials and specifications, please confirm whether it is suitable before use. Do not use it for special gases (Such as: N2. AIR, etc.), mostly used for liquids. Due to the characteristics of the fuselage material, it may be damaged due to vibration. Check the input and output directions when setting up.
Overview
Fluids used: chemical liquids, pure water (not for acidic fluids. When used in acidic fluids and ammonia, please consult our company. )
Fluid temperature: 5-80℃
Working pressure: 0-0.2Mpa
Installation method: make the OUT side air outlet upward Maximum suction capacity (cm3):1/4-1/8 0.04 1/4 0.12
CV value:1/4-1/8 0.08 1/4 0.32

Specifications


Flared type

Number	Size
K2310	1/4"-1/8"
K2311	1/4"
