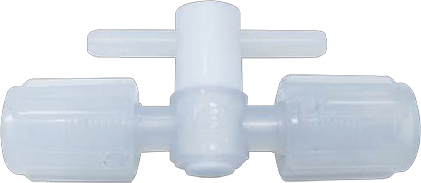

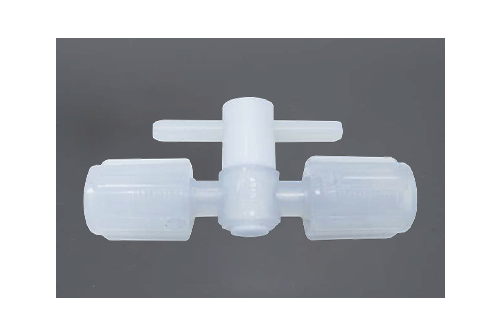

PFA plug valves are designed for high-purity semiconductor applications. The design adopts molded high-purity PFA valve body and machined PTFE valve stem. The minimized form factor design is extremely suitable for semiconductor applications with extremely high space requirements. The crimping of the valve stem and the valve body ensures the sealing while maintaining the smooth operation of 90° rotation. Xunshi Technology's redesigned structure reduces the risk of leakage.
Liquids: chemicals, ultrapure water (do not use muddy liquids) Chemicals, D. IWater(Don’t use the slurry)
Working pressure: 0-0.5Mpa
Pneumatic diaphragm valve actuator control pressure: 0.5Mpa control port: Rp 1/8
Back pressure: 0-0.5Mpa
Working temperature: normal temperature 0-100℃, high temperature 0-130℃
Material: Main body: PFA nut: PFA base and actuator: PVDF diaphragm: PTFE
Precautions: According to the precautions of internal chemical substances, due to changes in product materials and specifications, please confirm whether it is suitable before use. Do not use it for special gases
(Such as: N2. AIR, etc.), mostly used for liquids. Due to the characteristics of the fuselage material, it may be damaged due to vibration. Check the input and output directions when setting up.
Connection method: flared type
Material: Body PFA, PTFE in addition to body
Features：
1. Minimize the appearance design and take up almost no space
2. The connection method is more practical
3.90° rotation, stable flow
Working temperature: 17℃-100℃
Maximum working pressure: 4Bar
Flared type

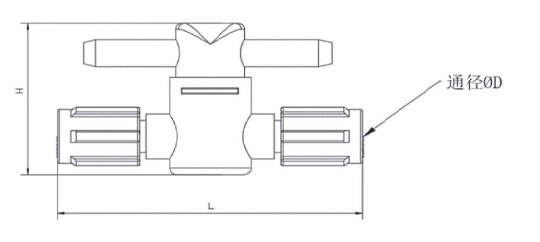

| Size | Diameter | L | H |
| 1/4" | φ3.1 | 93.08 | 50.54 |
| 3/8" | φ6.5 | 50.54 | 50.54 |
| 1/2" | φ9.9 | 102.54 | 50.54 |
