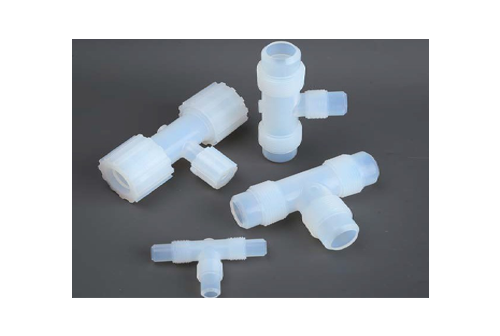

三通扩口接头
应用于高纯度的半导体行业，也适用于超纯水或腐蚀性化学物质，在-40°C至200°C之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗耐磨。

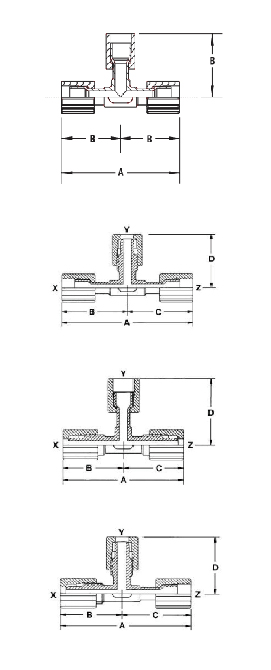

等径三通
变径三通
短三通接头
NPT三通
NPT三通
螺帽
| 编号 | 尺寸 | 孔径 | A | B | C |
| K3147 | 1/4" | 3.3 | 81.8 | 40.9 | 40.9 |
| K3148 | 3/8" | 6.4 | 87.9 | 43.9 | 43.9 |
| K3149 | 1/2" | 9.7 | 92.7 | 46.5 | 46.5 |
| K3150 | 3/4" | 16 | 110.7 | 55.4 | 55.4 |
| K3151 | 1" | 22.4 | 137.2 | 68.6 | 68.6 |
| K3412 | 1.25" | 27.95 | 176.66 | 88.32 | 88.32 |
| K3415 | 1.5" | 33.70 | 215.00 | 107.50 | 107.50 |
| 编号 | 尺寸 | 孔径 | A | B | C | D |
| K3276 | 1/4" x 1/4" x 3/8" | 3.3 | 84.8 | 40.9 | 43.9 | 40.9 |
| K3277 | 1/4" x 3/8" x 1/4" | 3.3 | 82.8 | 41.4 | 41.4 | 43.7 |
| K3278 | 1/4" x 3/8" x 3/8" | 3.3 | 84.8 | 40.9 | 43.9 | 43.9 |
| K3157 | 3/8" x 1/4" x 3/8" | 3.3 | 87.9 | 43.9 | 43.9 | 40.9 |
| K3279 | 3/8" x 1/2" x3/8" | 6.4 | 87.9 | 43.9 | 43.9 | 46.0 |
| K3280 | 3/8" x 3/4" x 3/8" | 6.4 | 96.5 | 48.3 | 48.3 | 56.4 |
| K3281 | 1/2" x 1/4" x 1/4" | 3.3 | 87.4 | 46.5 | 40.9 | 40.9 |
| K3158 | 1/2" x 1/4" x 1/2" | 3.3 | 93 | 46.5 | 46.5 | 40.9 |
| K3282 | 1/2" x 1/2" x 1/4" | 3.3 | 87.6 | 46.7 | 40.9 | 46.7 |
| K3283 | 1/2" x 3/8" x 3/8" | 6.4 | 90.4 | 46.5 | 43.9 | 43.9 |
| K3159 | 1/2" x 3/8" x 1/2" | 6.4 | 93 | 46.5 | 46.5 | 44.2 |
| K3284 | 1/2" x 1/2" x 3/8" | 6.4 | 91.7 | 46.5 | 45.2 | 44.7 |
| K3285 | 1/2" x 3/4" x 1/2" | 9.7 | 93 | 46.5 | 46.5 | 49.8 |
| K3286 | 1/2" x 1" x 1/2" | 9.7 | 114.8 | 57.4 | 57.4 | 68.6 |
| K3287 | 1/2" x 1" x 1" | 9.7 | 125.7 | 57.9 | 67.8 | 68.6 |
| K3252 | 3/4" x1/4"x 3/4" | 3.3 | 110.7 | 55.4 | 55.4 | 45.5 |
| K3253 | 3/4"x3/8"x3/4" | 6.4 | 110.7 | 55.4 | 55.4 | 50.3 |
| K3288 | 3/4"x1/2"x1/4" | 3.3 | 100.1 | 55.4 | 44.7 | 51.1 |
| K3289 | 3/4" x1/2"x1/2" | 9.7 | 106.2 | 55.4 | 50.8 | 50.8 |
| K3160 | 3/4"x1/2"x3/4" | 9.7 | 110.7 | 55.4 | 55.4 | 50.8 |
| K3290 | 3/4"x3/4" x3/8" | 6.4 | 104.4 | 56.1 | 48.3 | 55.4 |
| K3291 | 3/4"x3/4"x1/2" | 9.7 | 106.2 | 55.4 | 50.8 | 55.4 |
| K3292 | 3/4"x1"x3/4" | 16 | 124 | 62 | 62 | 68.6 |
| K3293 | 3/4"x1"x1" | 16 | 130 | 62.2 | 67.8 | 68.6 |
| K3256 | 1"x3/8"x1" | 6.4 | 136.7 | 68.3 | 68.3 | 60.7 |
| K3162 | 1"x1/2"x1" | 9.7 | 136.7 | 68.3 | 68.3 | 57.7 |
| K3161 | 1"x3/4"x1" | 16 | 136.1 | 68.1 | 68.1 | 61.7 |
| 编号 | 尺寸 | 孔径 | A | B | C | D |
| K3272 | 1/4" | 4.1 | 84.8 | 42.4 | ||
| K3273 | 3/8" | 6.4 | 87.9 | 43.9 | ||
| K3274 | 1/2" | 9.7 | 93.5 | 46.7 | ||
| K3255 | 3/4" | 16.0 | 112.3 | 56.1 | ||
| K3275 | 1" | 22.4 | 151.4 | 75.7 | ||
| K3196 | 1/4" | 3.3 | 84.3 | 42.2 | 42.2 | 41.9 |
| K3198 | 3/8" | 6.4 | 88.9 | 44.4 | 44.4 | 44.7 |
| K3201 | 1/2" | 9.7 | 92.5 | 46.2 | 46.2 | 46.7 |
| K3206 | 3/4" | 16.0 | 112.3 | 56.1 | 56.1 | 55.9 |
| K3210 | 1" | 22.4 | 151.4 | 75.7 | 75.7 | 72.4 |
| K3163 | 1/4" | 3.3 | 83.3 | 41.7 | 41.7 | 42.2 |
| K3166 | 3/8" | 6.4 | 89.2 | 44.7 | 44.4 | 44.4 |
| K3171 | 1/2" | 9.7 | 93.2 | 46.7 | 46.5 | 46.2 |
| K3177 | 3/4" | 16.0 | 111.8 | 55.9 | 55.9 | 56.1 |
| K3181 | 1" | 22.4 | 144.8 | 72.4 | 72.4 | 75.7 |
| K3211 | 1/4" | 3.3 | 84.3 | 41.9 | 42.4 | 41.9 |
| K3214 | 3/8" | 6.4 | 89.2 | 44.7 | 44.4 | 44.7 |
| K3222 | 1/2" | 9.7 | 93.2 | 47.0 | 46.2 | 47.0 |
| K3224 | 3/4" | 16.0 | 112.0 | 55.9 | 56.1 | 55.9 |
| K3224 | 1" | 22.4 | 147.3 | 71.9 | 75.4 | 72.4 |
| 编号 | 尺寸 | NPT | 尺寸 | 孔径 | A | B | C |
| K3226 | 1/4" | 1/8" | 1/4" | 3.3 | 81.8 | 40.9 | 27.2 |
| K3227 | 1/4" | 1/4" | 1/4" | 3.3 | 81.3 | 40.6 | 27.2 |
| K3228 | 3/8" | 1/8" | 3/8" | 5.1 | 87.9 | 43.9 | 27.4 |
| K3229 | 3/8" | 1/4" | 3/8" | 6.4 | 87.9 | 43.9 | 27.4 |
| K3230 | 3/8" | 3/8" | 3/8" | 6.4 | 87.9 | 43.9 | 27.4 |
| K3231 | 3/8" | 1/2" | 3/8" | 6.4 | 88.4 | 44.2 | 30.0 |
| K3232 | 1/2" | 1/4" | 1/2" | 7.1 | 92.7 | 46.5 | 27.4 |
| K3233 | 1/2" | 1/2" | 1/2" | 9.7 | 92.7 | 46.5 | 30.0 |
| K3235 | 3/4" | 1/4" | 3/4" | 7.1 | 110.7 | 55.4 | 31.5 |
| K3236 | 3/4" | 1/2" | 3/4" | 9.7 | 110.7 | 55.4 | 34.3 |
| K3237 | 3/4" | 3/4" | 3/4" | 16.0 | 111.8 | 55.9 | 34.5 |
| 编号 | 尺寸 | NPT | 孔径 | A | B | C |
| K3182 | 1/4"*1/4" | 1/8" | 3.3 | 68.1 | 40.9 | 40.9 |
| K3183 | 1/4"*1/4" | 1/4" | 3.3 | 68.1 | 40.9 | 40.9 |
| K3184 | 1/4"*1/4" | 3/8" | 3.3 | 68.1 | 40.9 | 40.9 |
| K3185 | 3/8"*3/8" | 1/8" | 5.1 | 71.1 | 43.9 | 43.9 |
| K3186 | 3/8"*3/8" | 1/4" | 6.4 | 71.1 | 43.9 | 43.9 |
| K3187 | 3/8"*3/8" | 3/8" | 6.4 | 71.1 | 43.9 | 43.9 |
| K3188 | 3/8"*3/8" | 1/2" | 6.4 | 73.9 | 43.9 | 43.9 |
| K3191 | 1/2"*1/2" | 1/4" | 7.1 | 73.4 | 46.5 | 46.5 |
| K3189 | 1/2"*1/2" | 3/8" | 9.7 | 73.4 | 46.5 | 46.5 |
| K3190 | 1/2"*1/2" | 1/2" | 9.7 | 76.5 | 46.5 | 46.5 |
| K3192 | 3/4"*3/4" | 1/2" | 13.2 | 90.2 | 55.6 | 55.6 |
| K3193 | 3/4"*3/4" | 3/4" | 16.0 | 89.9 | 55.4 | 55.4 |
| 编号 | 尺寸 | L | A | B |
| K7028 | 1/8" | |||
| K7027 | 1/4" | 27.0 | 21.0 | 6.5 |
| K7026 | 3/8" | 27.0 | 24.0 | 10.0 |
| K7025 | 1/2" | 30.0 | 27.0 | 12.9 |
| K7024 | 3/4" | 35.0 | 35.0 | 19.5 |
| K7023 | 1" | 43.0 | 46.0 | 26.0 |
