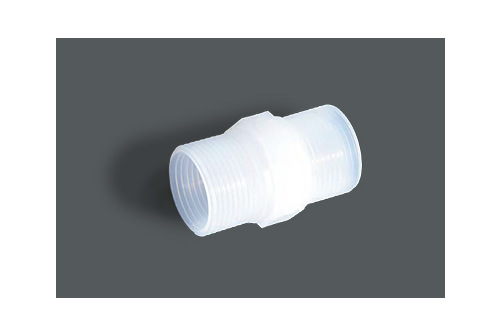

入珠直接接头
应用于高纯度的半导体行业，也适用于超纯水或腐蚀性化学物质，在-40°C至200°C之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗耐磨。

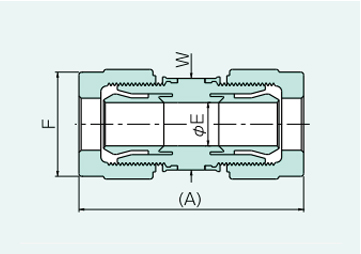

双螺帽直接
双螺帽变径直通

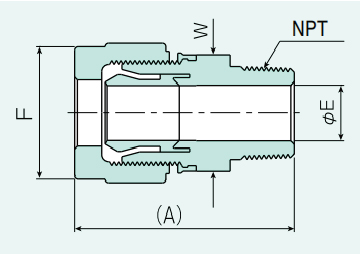

单螺帽直通接头
| 编号 | 尺寸 | A | ΦE | F | W |
| K3075 | 1/8" | 36.5 | 2.1 | 12 | 12 |
| K3006 | 1/4" | 45 | 4 | 16 | 15 |
| K3007 | 3/8" | 57 | 8 | 23 | 21 |
| K3008 | 1/2" | 65 | 10 | 28 | 25 |
| K3009 | 3/4" | 82 | 16 | 38 | 33.5 |
| K3010 | 1" | 101 | 22 | 47.5 | 43 |
| 编号 | T1 | T2 | A | ΦE1 | ΦE2 | F1 | F2 | W |
| K3019 | 1/4" | 1/8" | 41 | 4 | 2.1 | 16 | 12 | 15 |
| K3078 | 3/8" | 1/8" | 47 | 8 | 2.1 | 23 | 12 | 21 |
| K3020 | 3/8" | 1/4" | 51 | 8 | 4 | 23 | 16 | 21 |
| K3079 | 1/2" | 1/8" | 51 | 10 | 2.1 | 28 | 12 | 25 |
| K3080 | 1/2" | 1/4" | 55 | 10 | 4 | 28 | 16 | 25 |
| K3021 | 1/2" | 3/8" | 61 | 10 | 8 | 28 | 23 | 25 |
| K3316 | 3/4" | 1/8" | 61 | 16 | 2.1 | 38 | 12 | 33.5 |
| K3022 | 3/4" | 1/4" | 65 | 16 | 4 | 38 | 16 | 33.5 |
| K3023 | 3/4" | 3/8" | 71 | 16 | 8 | 38 | 23 | 33.5 |
| K3024 | 3/4" | 1/2" | 75 | 16 | 10 | 38 | 28 | 33.5 |
| K3317 | 1" | 1/4" | 77 | 22 | 4 | 47.5 | 16 | 43 |
| K3318 | 1" | 3/8" | 83 | 22 | 8 | 47.5 | 23 | 43 |
| K3025 | 1" | 1/2" | 87 | 22 | 10 | 47.5 | 28 | 43 |
| K3026 | 1" | 3/4" | 94 | 22 | 16 | 47.5 | 38 | 43 |
| 编号 | 尺寸 | NPT | A | ΦE | F | W |
| K3319 | 1/8" | 1/8" | 31 | 2.1 | 12 | 12 |
| K3059 | 1/4" | 1/8" | 35 | 4 | 16 | 15 |
| K3060 | 1/4" | 1/4" | 39 | 4 | 16 | 15 |
| K3061 | 1/4" | 3/8" | 39 | 4 | 16 | 15 |
| K3320 | 1/4" | 1/2" | 43 | 4 | 16 | 23 |
| K3321 | 1/4" | 3/4" | 48 | 4 | 16 | 28 |
| K3322 | 3/8" | 1/8" | 41 | 4 | 23 | 21 |
| K3062 | 3/8" | 1/4" | 45 | 6 | 23 | 21 |
| K3063 | 3/8" | 3/8" | 45 | 8 | 23 | 21 |
| K3064 | 3/8" | 1/2" | 49 | 8 | 23 | 21 |
| K3323 | 3/8" | 3/4" | 54 | 8 | 23 | 28 |
| X3324 | 1/2" | 1/8" | 45 | 4.4 | 28 | 25 |
| X3325 | 1/2" | 1/4" | 49 | 6 | 28 | 25 |
| K3065 | 1/2" | 3/8" | 49 | 10 | 28 | 25 |
| K3066 | 1/2" | 1/2" | 53 | 10 | 28 | 25 |
| K3067 | 1/2" | 3/4" | 55 | 10 | 28 | 25 |
| K3326 | 1/2" | 1" | 67 | 10 | 28 | 35 |
| K3069 | 3/4" | 3/4" | 65 | 16 | 38 | 33.5 |
| K3070 | 3/4" | 1" | 68 | 16 | 38 | 33.5 |
| K3329 | 1" | 3/8" | 71 | 10 | 47.5 | 43 |
| K3071 | 1" | 1/2" | 75 | 12 | 47.5 | 43 |
| K3072 | 1" | 3/4" | 77 | 16 | 47.5 | 43 |
| K3073 | 1" | 1" | 80 | 22 | 47.5 | 43 |
| K3327 | 3/4" | 1/4" | 59 | 6 | 38 | 33.5 |
| K3328 | 3/4" | 3/8" | 59 | 10 | 38 | 33.5 |
| K3068 | 3/4" | 1/2" | 63 | 12 | 38 | 33.5 |
