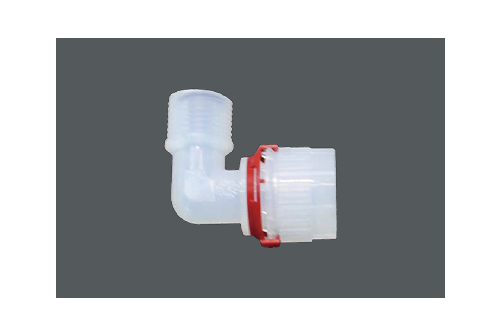

入珠弯头接头
应用于高纯度的半导体行业，也适用于超纯水或腐蚀性化学物质，在-40°C至200°C之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗耐磨。

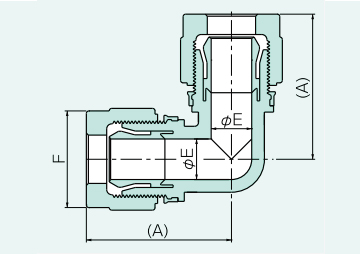

双螺帽弯头

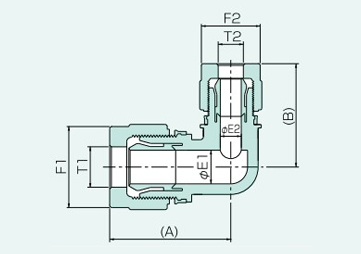

双螺帽变径弯头

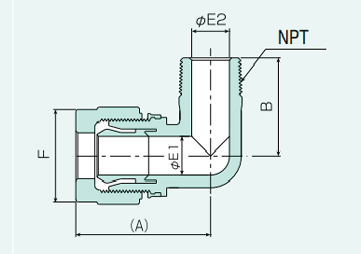

单螺帽弯头
| 编号 | 尺寸 | A | ΦE | F |
| K3106 | 1/8" | 23 | 2.1 | 12 |
| K3107 | 1/4" | 30 | 4 | 16 |
| K3108 | 3/8" | 39.5 | 8 | 23 |
| K3109 | 1/2" | 45.5 | 10 | 28 |
| K3110 | 3/4" | 57 | 16 | 38 |
| K3111 | 1" | 69.5 | 22 | 47.5 |
| 编号 | T1 | T2 | A | B | ΦE1 | ΦE2 | F1 | F2 |
| K3330 | 1/4" | 1/8" | 30 | 26 | 4 | 2.1 | 16 | 12 |
| K3331 | 3/8" | 1/4" | 39.5 | 33 | 8 | 4 | 23 | 16 |
| K3332 | 1/2" | 1/8" | 34 | 27.5 | 10 | 2.1 | 28 | 12 |
| K3333 | 1/2" | 1/4" | 45.5 | 35 | 10 | 4 | 28 | 16 |
| K3334 | 1/2" | 3/8" | 45.5 | 41.5 | 10 | 6 | 28 | 19 |
| K3335 | 3/4" | 1/4" | 57 | 39 | 16 | 4 | 38 | 16 |
| K3124 | 3/4" | 3/8" | 57 | 45.5 | 16 | 8 | 38 | 23 |
| K3125 | 3/4" | 1/2" | 57 | 49.5 | 16 | 10 | 38 | 28 |
| K3336 | 1" | 1/4" | 69.5 | 44 | 22 | 4 | 47.5 | 16 |
| K3337 | 1" | 3/8" | 69.5 | 50.5 | 22 | 8 | 47.5 | 23 |
| K3338 | 1" | 1/2" | 69.5 | 54.5 | 22 | 10 | 47.5 | 28 |
| K3127 | 1" | 3/4" | 69.5 | 62 | 22 | 16 | 47.5 | 38 |
| 编号 | 尺寸 | NPT | A | B | ΦE1 | ΦE2 | F |
| K3339 | 1/8" | 1/8" | 23 | 18.5 | 2.1 | 2.1 | 12 |
| K3340 | 1/4" | 1/8" | 30 | 21 | 4 | 4 | 16 |
| K3257 | 1/4" | 1/4" | 30 | 25 | 4 | 4 | 16 |
| K3341 | 1/4" | 3/8" | 31.5 | 26.5 | 4 | 4 | 16 |
| K3342 | 1/4" | 1/2" | 30.5 | 24.5 | 4 | 12 | 16 |
| K3343 | 1/4" | 3/4" | 33 | 26.5 | 4 | 16 | 16 |
| K3344 | 3/8" | 1/8" | 39.5 | 24 | 8 | 4 | 23 |
| K3345 | 3/8" | 1/4" | 39.5 | 28 | 8 | 6 | 23 |
| K3258 | 3/8" | 3/8" | 39.5 | 28 | 8 | 8 | 23 |
| K3346 | 3/8" | 1/2" | 39.5 | 32 | 8 | 8 | 23 |
| K3347 | 3/8" | 3/4" | 39 | 29.5 | 8 | 16 | 23 |
| K3348 | 1/2" | 1/8" | 35.5 | 23.9 | 10 | 4.4 | 28 |
| K3349 | 1/2" | 1/4" | 45.5 | 30 | 10 | 6 | 28 |
| K3350 | 1/2" | 3/8" | 45.5 | 30 | 10 | 10 | 28 |
| K3259 | 1/2" | 1/2" | 45.5 | 34 | 10 | 10 | 28 |
| K3351 | 1/2" | 3/4" | 45.5 | 36 | 10 | 10 | 28 |
| K3352 | 1/2" | 1" | 46.5 | 35.5 | 10 | 22 | 28 |
| K3260 | 3/4" | 3/4" | 57 | 40 | 16 | 16 | 38 |
| K3356 | 3/4" | 1" | 53.5 | 39.8 | 16 | 16 | 38 |
| K3357 | 1" | 1/4" | 51.5 | 37.7 | 22 | 6 | 47.5 |
| K3358 | 1" | 3/8" | 53 | 34.5 | 22 | 10 | 47.5 |
| K3359 | 1" | 1/2" | 54.5 | 41 | 22 | 12 | 47.5 |
| K3360 | 1" | 3/4" | 69.5 | 45 | 22 | 16 | 47.5 |
| K3361 | 1" | 1" | 69.5 | 49 | 22 | 22 | 47.5 |
| K3353 | 3/4" | 1/4" | 44.5 | 32.4 | 16 | 6 | 38 |
| K3354 | 3/4" | 3/8" | 57 | 34 | 16 | 10 | 38 |
| K3355 | 3/4" | 1/2" | 57 | 38 | 16 | 12 | 38 |
