入珠三通接头
应用于高纯度的半导体行业，也适用于超纯水或腐蚀性化学物质，在-40°C至200°C之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗耐磨。

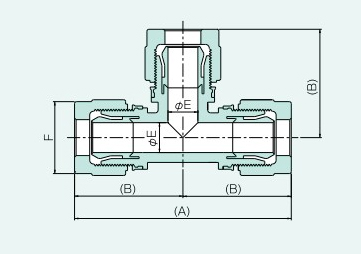

等径三通
变径三通
变径三通
| 编号 | 尺寸 | A | B | ΦE | F |
| K3077 | 1/8" | 45.5 | 23 | 2.1 | 12 |
| K3152 | 1/4" | 60 | 30 | 4 | 16 |
| K3153 | 3/8" | 79 | 39.5 | 8 | 23 |
| K3154 | 1/2" | 91 | 45.5 | 10 | 28 |
| K3155 | 3/4" | 114 | 57 | 16 | 38 |
| K3156 | 1" | 139 | 69.5 | 22 | 47.5 |
| 编号 | T1 | T2 | T3 | A | B | C | D | ΦE1 | ΦE2 | ΦE3 | F1 | F2 | F3 |
| K3361 | 1/8" | 1/4" | 1/8" | 51.5 | 26 | 26 | 30 | 2.1 | 4 | 2.1 | 12 | 16 | 12 |
| K3362 | 1/8" | 1/2" | 1/8" | 54.5 | 27.5 | 27.5 | 34 | 2.1 | 10 | 2.1 | 12 | 28 | 12 |
| K3363 | 1/4" | 1/8" | 1/4" | 60 | 30 | 30 | 26 | 4 | 2.1 | 4 | 16 | 12 | 16 |
| K3364 | 1/4" | 3/8" | 1/4" | 66 | 33 | 33 | 39.5 | 4 | 8 | 4 | 16 | 23 | 16 |
| K3365 | 1/4" | 1/2" | 1/4" | 63 | 31.5 | 31.5 | 36.5 | 4 | 10 | 4 | 16 | 28 | 16 |
| K3366 | 1/4" | 1" | 1/4" | 81 | 40.5 | 40.5 | 50.5 | 4 | 22 | 4 | 16 | 47.5 | 16 |
| K3367 | 3/8" | 1/8" | 3/8" | 60 | 30 | 30 | 25.5 | 8 | 2.1 | 8 | 23 | 12 | 23 |
| K3368 | 3/8" | 1/4" | 1/4" | 72.5 | 39.5 | 33 | 33 | 8 | 4 | 4 | 23 | 16 | 16 |
| K3241 | 3/8" | 1/4" | 3/8" | 79 | 39.5 | 39.5 | 33 | 8 | 4 | 8 | 23 | 16 | 23 |
| K3369 | 3/8" | 3/8" | 1/8" | 61 | 35.5 | 25.5 | 35.5 | 8 | 8 | 2.1 | 23 | 23 | 12 |
| K3370 | 3/8" | 3/8" | 1/4" | 72.5 | 39.5 | 33 | 39.5 | 8 | 8 | 4 | 23 | 23 | 16 |
| K3371 | 3/8" | 1/2" | 3/8" | 83 | 41.5 | 41.5 | 45.5 | 8 | 10 | 8 | 23 | 28 | 23 |
| K3372 | 3/8" | 3/4" | 1/4" | 77.5 | 41.8 | 35.8 | 46.5 | 8 | 16 | 4 | 23 | 38 | 16 |
| K3373 | 3/8" | 3/4" | 3/8" | 83.5 | 42 | 42 | 46.5 | 8 | 16 | 8 | 23 | 38 | 23 |
| K3374 | 1/2" | 1/8" | 1/2" | 68 | 34 | 34 | 27.5 | 10 | 2.1 | 10 | 28 | 12 | 28 |
| K3375 | 1/2" | 1/4" | 1/4" | 80.5 | 45.5 | 35 | 35 | 10 | 4 | 4 | 28 | 16 | 16 |
| K3376 | 1/2" | 1/4" | 3/8" | 69 | 36.5 | 32.5 | 31.5 | 10 | 4 | 8 | 28 | 16 | 23 |
| K3377 | 1/2" | 1/4" | 1/2" | 91 | 45.5 | 45.5 | 35 | 10 | 4 | 10 | 28 | 16 | 28 |
| K3378 | 1/2" | 3/8" | 1/4" | 69 | 39.5 | 29.5 | 37.5 | 10 | 8 | 4 | 28 | 23 | 16 |
| K3379 | 1/2" | 3/8" | 3/8" | 87 | 45.5 | 41.5 | 41.5 | 10 | 8 | 8 | 28 | 23 | 23 |
| K3242 | 1/2" | 3/8" | 1/2" | 91 | 45.5 | 45.5 | 41.5 | 10 | 8 | 10 | 28 | 23 | 28 |
| K3380 | 1/2" | 1/2" | 1/4" | 80.5 | 45.5 | 35 | 45.5 | 10 | 10 | 4 | 28 | 28 | 16 |
| K3381 | 1/2" | 1/2" | 3/8" | 79 | 41.5 | 37.5 | 41.5 | 10 | 10 | 8 | 28 | 28 | 23 |
| K3382 | 1/2" | 3/4" | 3/8" | 87.5 | 46 | 42 | 48.5 | 10 | 16 | 8 | 28 | 38 | 23 |
| K3383 | 1/2" | 3/4" | 1/2" | 99 | 49.5 | 49.5 | 57 | 10 | 16 | 10 | 28 | 38 | 28 |
| K3384 | 1/2" | 1" | 1/2" | 101 | 50.5 | 50.5 | 55.5 | 10 | 22 | 10 | 28 | 47.5 | 28 |
| 编号 | T1 | T2 | T3 | A | B | C | D | ΦE1 | ΦE2 | ΦE3 | F1 | F2 | F3 |
| K3385 | 3/4" | 1/8" | 3/4" | 82 | 41 | 41 | 31.5 | 16 | 2.1 | 16 | 38 | 12 | 38 |
| K3386 | 3/4" | 1/4" | 1/2" | 80 | 43.5 | 36.5 | 36 | 16 | 4 | 10 | 38 | 16 | 28 |
| K3387 | 3/4" | 1/4" | 3/4" | 114 | 57 | 57 | 39 | 16 | 4 | 16 | 38 | 16 | 38 |
| K3388 | 3/4" | 3/8" | 1/4" | 76 | 46.5 | 29.5 | 42 | 16 | 8 | 4 | 38 | 23 | 16 |
| K3389 | 3/4" | 3/8" | 3/8" | 82 | 46.5 | 35.5 | 42 | 16 | 8 | 8 | 38 | 23 | 23 |
| K3243 | 3/4" | 3/8" | 3/4" | 114 | 57 | 57 | 45.5 | 16 | 8 | 16 | 38 | 23 | 38 |
| K3390 | 3/4" | 1/2" | 3/8" | 86 | 48.5 | 37.5 | 46 | 16 | 10 | 8 | 38 | 28 | 23 |
| K3391 | 3/4" | 1/2" | 1/2" | 106.5 | 57 | 49.5 | 49.5 | 16 | 10 | 10 | 38 | 28 | 28 |
| K3244 | 3/4" | 1/2" | 3/4" | 114 | 57 | 57 | 49.5 | 16 | 10 | 16 | 38 | 28 | 38 |
| K3392 | 3/4" | 3/4" | 1/4" | 96 | 57 | 39 | 57 | 16 | 16 | 4 | 38 | 38 | 16 |
| K3393 | 3/4" | 3/4" | 3/8" | 102.5 | 57 | 45.5 | 57 | 16 | 16 | 8 | 38 | 38 | 23 |
| K3394 | 3/4" | 3/4" | 1/2" | 106.5 | 57 | 49.5 | 57 | 16 | 16 | 10 | 38 | 38 | 28 |
| K3395 | 3/4" | 1" | 3/8" | 104 | 57.5 | 46.5 | 60 | 16 | 22 | 8 | 38 | 47.5 | 23 |
| K3396 | 3/4" | 1" | 1/2" | 108 | 57.5 | 50.5 | 60 | 16 | 22 | 10 | 38 | 47.5 | 28 |
| K3397 | 3/4" | 1" | 3/4" | 124 | 62 | 62 | 69.5 | 16 | 22 | 16 | 38 | 47.5 | 38 |
| K3398 | 1" | 1/4" | 1" | 139 | 69.5 | 69.5 | 44 | 22 | 4 | 22 | 47.5 | 16 | 47.5 |
| K3399 | 1" | 3/8" | 3/8" | 89 | 53.5 | 35.5 | 46.5 | 22 | 8 | 8 | 47.5 | 23 | 23 |
| K3400 | 1" | 3/8" | 1" | 139 | 69.5 | 69.5 | 50.5 | 22 | 8 | 22 | 47.5 | 23 | 47.5 |
| K3401 | 1" | 1/2" | 1/2" | 97 | 55.5 | 41.5 | 50.5 | 22 | 10 | 10 | 47.5 | 28 | 28 |
| K3402 | 1" | 1/2" | 3/4" | 104 | 55.5 | 48.5 | 50.5 | 22 | 10 | 16 | 47.5 | 28 | 38 |
| K3403 | 1" | 1/2" | 1" | 139 | 69.5 | 69.5 | 54.5 | 22 | 10 | 22 | 47.5 | 28 | 47.5 |
| K3404 | 1" | 3/4" | 1/4" | 95.5 | 60 | 36 | 57.5 | 22 | 16 | 4 | 47.5 | 38 | 16 |
| K3405 | 1" | 3/4" | 3/8" | 101.5 | 60 | 42 | 57.5 | 22 | 16 | 8 | 47.5 | 38 | 23 |
| K3406 | 1" | 3/4" | 1/2" | 105.5 | 60 | 46 | 57.5 | 22 | 16 | 10 | 47.5 | 38 | 28 |
| K3407 | 1" | 3/4" | 3/4" | 131.5 | 69.5 | 62 | 62 | 22 | 16 | 16 | 47.5 | 38 | 38 |
| K3245 | 1" | 3/4" | 1" | 139 | 69.5 | 69.5 | 62 | 22 | 16 | 22 | 47.5 | 38 | 47.5 |
| K3408 | 1" | 1" | 1/4" | 113.5 | 69.5 | 44 | 69.5 | 22 | 22 | 4 | 47.5 | 47.5 | 16 |
| K3409 | 1" | 1" | 3/8" | 120 | 69.5 | 50.5 | 69.5 | 22 | 22 | 8 | 47.5 | 47.5 | 23 |
| K3410 | 1" | 1" | 1/2" | 124 | 69.5 | 54.5 | 69.5 | 22 | 22 | 10 | 47.5 | 47.5 | 28 |
| K3411 | 1" | 1" | 3/4" | 131.5 | 69.5 | 62 | 69.5 | 22 | 22 | 16 | 47.5 | 47.5 | 38 |
