对焊直接接头
应用于高纯度的半导体行业，也适用于超纯水或腐蚀性化学物质，在-40°C至200°C之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗耐磨。

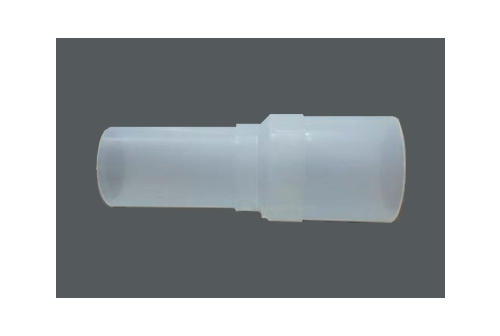

变径直通
经典款变径直通

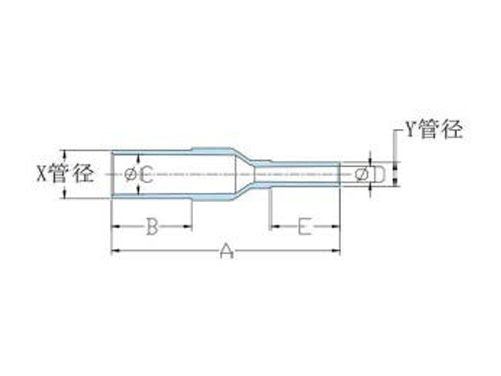

| 编号 | 尺寸 | A | B | ΦC | ΦD | E |
| K3566 | 3/8" x 1/4" | 73.62 | 25.00 | 6.36 | 4 | 25 |
| K3567 | 1/2" x 1/4" | 73.62 | 25.00 | 9.54 | 3.97 | 25 |
| K3568 | 1/2" x 3/8" | 73.62 | 25.00 | 9.53 | 6.36 | 25 |
| K3569 | 3/4" x 1/4" | 83.34 | 29.37 | 15.87 | 3.96 | 25.4 |
| K3570 | 3/4" x 3/8" | 83.34 | 29.37 | 15.87 | 6.34 | 25.4 |
| K3571 | 3/4" x 1/2" | 83.34 | 29.37 | 15.87 | 9.52 | 25.4 |
| K3572 | 1" x 1/4" | 92.08 | 37.31 | 22.23 | 3.94 | 24.61 |
| K3573 | 1" x 3/8" | 92.08 | 37.31 | 22.23 | 6.51 | 24.61 |
| K3574 | 1" x 1/2" | 92.08 | 37.31 | 22.23 | 9.51 | 24.61 |
| K3575 | 1" x 3/4" | 98.43 | 37.31 | 22.23 | 15.88 | 30.96 |
| K3576 | 1-1/4" x 1" | 98.43 | 34.33 | 27.75 | 21.96 | 26.01 |
| K3577 | 1-1/2" x 1" | 98.43 | 34.33 | 33.70 | 22.21 | 26.01 |
| K3578 | 1-1/2" x 1-1/4" | 98.43 | 34.33 | 33.70 | 27.7 | 26.01 |
| 编号 | 尺寸 | A | B | ΦC | ΦD | E |
| K3579 | 3/8" x 1/4" | 15.00 | 12.00 | 6.36 | 3.97 | 3.00 |
| K3580 | 1/2" x 1/4" | 15.00 | 12.00 | 9.53 | 3.96 | 3.00 |
| K3581 | 1/2" x 3/8" | 15.00 | 12.00 | 9.53 | 6.37 | 3.00 |
| K3582 | 3/4" x 1/4" | 15.00 | 12.00 | 15.88 | 3.97 | 3.00 |
| K3583 | 3/4" x 3/8" | 15.00 | 12.00 | 15.88 | 6.35 | 3.00 |
| K3584 | 3/4" x 1/2" | 15.00 | 12.00 | 15.88 | 9.53 | 3.00 |
| K3585 | 1" x 1/4" | 15.00 | 12.00 | 22.24 | 3.95 | 3.00 |
| K3586 | 1" x 3/8" | 15.00 | 12.00 | 22.24 | 6.32 | 3.00 |
| K3587 | 1" x 1/2" | 15.00 | 12.00 | 22.24 | 9.53 | 3.00 |
| K3588 | 1" x 3/4" | 15.00 | 12.00 | 22.24 | 15.90 | 3.00 |
| K3589 | 1-1/4" x 3/4" | 18.00 | 15.00 | 27.76 | 15.90 | 3.00 |
| K3590 | 1-1/4" x 1" | 18.00 | 15.00 | 27.76 | 22.21 | 3.00 |
| K3591 | 1-1/2" x 3/4" | 18.00 | 15.00 | 33.70 | 15.90 | 3.00 |
| K3592 | 1-1/2" x 1" | 18.00 | 15.00 | 33.70 | 22.21 | 3.00 |
| K3593 | 1-1/2" x 1-1/4" | 18.00 | 15.00 | 33.70 | 27.74 | 3.00 |
